Tools

Tools in Koha all perform some sort of action. Often many of the items listed under Tools in Koha are referred to as ‘Reports’ in other library management systems.

  • Get there: More > Tools

Patrons and circulation

Patron lists

  • Get there: More > Tools > Patrons and circulation > Patron lists

Patron lists are a way to store a group of patrons for easy modification via the batch patron modification tool or reporting.

View of all patron lists and New patron list button

To create a new list of patrons click the ‘New patron list’ button

New patron list form

Enter a list name.

Checking the ‘Shared’ box will make this list visible to all users with the manage_patron_lists permission.

Save the list.

View of patrons in the list and search form to add new patrons to the list

Each list has an ‘Actions’ menu with more list options.

Action menu available on each patron list

To add patrons to the list click the ‘Add patrons’ link in the ‘Actions’ menu.


Enter the patron’s name or cardnumber in the search box and click on the right result to add the patron.

Alternatively, you can click on the ‘Enter multiple card numbers’ link and scan (or type in) barcodes in the box.

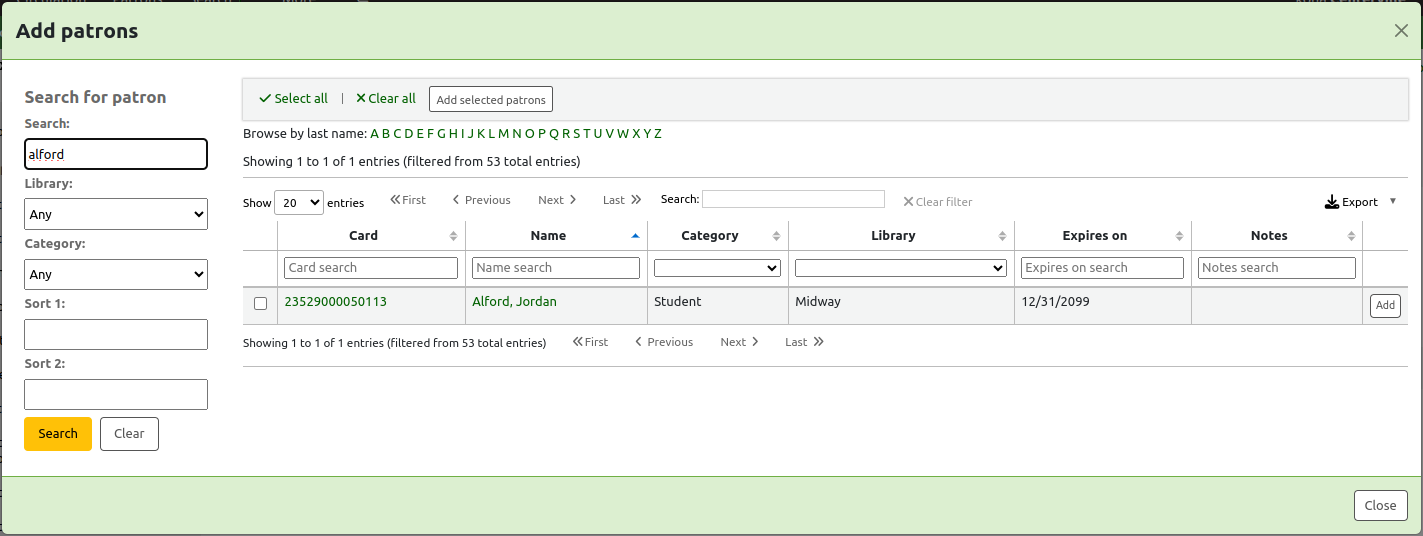

View of selected patron ready to be added to the list

Once you have all of the patrons you would like to add you can click the ‘Add patrons’ button to save them to the list.

View of all patrons of the list after adding patrons

Note

  • You can customize the columns of this table in the ‘Table settings’ section of the Administration module (table id: patron-list-table).

To delete a list, click the ‘Actions’ button and choose the ‘Delete list’ option.

View of the list of patron lists, the Actions button to the right of a list is pressed and the mouse cursor is on the Delete list option

To delete multiple lists at once, select the lists and click the ‘Delete selected lists’ button at the top of the table.

Version

The option to delete multiple lists at once was added in Koha version 23.11.

Patron clubs

  • Get there: More > Tools > Patrons and circulation > Patron clubs

Patron clubs create clubs in which patrons may be enrolled. It is useful for tracking summer reading programs, book clubs and other such clubs.

Important

Staff will need the clubs permissions to edit clubs, templates and enroll patrons. To learn how to set patron permissions, go to the patron permissions section of this manual.

Creating a new club template

A club template is a template that will be used to create clubs. You can add fields that can be filled out at the time a new club is created based on the template, or a new enrollment is created for a given club based on the template.

To create a new club template:

  • Click on the ‘New club template’ button.

    Form to create a club template

  • Fill out the form:

    • Name (required): enter a name for the club template. This could be something like ‘Adult book club’, ‘Children’s book club’ or ‘Summer reading program’. Remember, these templates will be the starting point for each club you create.

    • Description: enter any additional information.

    • Allow public enrollment: if this box is checked, it will allow patrons to enroll in a club based on this template from the OPAC.

    • Require valid email address: if this box is checked, only patrons with a valid email address can enroll. So they will need a email address to enroll.

    • Library: choose a library to limit the use of this template to staff from a specific library. If you leave it blank, staff from any library will be able to create a new club using this template.

  • Club fields: these fields will be used when creating a club based on this template. For example, this can be the name of the club, the name of the animator, the theme, etc. To add a club field, click on ‘Add new field’.

    Form to add club fields to a club template

    • Name: enter the text that will be used as the label of the field.

    • Description: enter any additional information about this field.

    • Authorized value category: if you want the field to be a dropdown menu, choose an authorized value category here. If this is left blank, the field will be a simple text field.

  • Enrollment fields: you can add any additional fields you want patrons to fill when they enroll in a club based on this template. To add an enrollment field, click on ‘Add new field’.

    Form to add enrollment fields to a club template

    • Name: enter the text that will be used as the label of the field.

    • Description: enter any additional information about this field.

    • Authorized value category: if you want the field to be a dropdown menu, choose an authorized value category here. If this is left blank, the field will be a simple text field.

  • Click ‘Save’.

Creating a new club based on a template

Once the templates are created, you can create actual clubs.

  • Click on the ‘New club’ dropdown menu and select the template you want to use.

    Form to create a new club based on a template called 'Adult book club', it includes custom club fields, Title of the book and Day and time of the meeting

  • Fill out the form with the club information:

    • Name (required): enter the name of the specific club you are creating. This is the name the staff and the patrons will see when enrolling. For example, ‘Summer 2018 reading club’.

    • Description: enter any additional information about the club.

    • Start date: choose the start date of the enrollment period. Staff and patrons will not be able to enroll in the club before the start date.

    • End date: choose the end date of the enrollment period. Once the club expires, enrollment will not be possible.

    • Library: if this club is limited to a specific library, choose it here. Only patrons from this specific library will be able to enroll. If you leave it blank, patrons from any library will be able to enroll.

    • If there were ‘Club fields’ in the template, they will appear at the bottom of the form.

  • Click ‘Save’.

Enrolling a patron in a club from the staff interface

To enroll a patron in a club from the staff interface:

  • Go to the patron’s account.

  • On the ‘Details’ page or the ‘Check out’ page, click on the ‘Clubs’ tab. All ongoing clubs will be displayed in this tab.

    Clubs tab in the patron's record

  • Click on the ‘Enroll’ button.

  • If there were any ‘Enrollment fields’ in the club template, they will appear here.

  • Click ‘Finish enrollment’.

You can also modify an enrollment by clicking the ‘Modify enrollment’ button, or cancel an enrollment by clicking on the ‘Cancel enrollment’ button.

Enrolling a patron in a club from the OPAC

If you allow public enrollment, the club will be visible on the OPAC.

  • Patrons have to sign into their account.

  • In the ‘Your summary’ section, they will be able to click on the ‘Clubs’ tab and click the ‘Enroll’ button to enroll.

    A patron's 'Clubs' tab, there are several clubs in which the patron can enroll

  • If there were any ‘Enrollment fields’ in the club template, they will appear here.

  • They can then click ‘Finish enrollment’.

Patron can also cancel their enrollment to a club by clicking the ‘Cancel enrollment’ button.

Viewing enrollments

You can monitor the enrollments in each club by going to the ‘Patron clubs’ tool page and choosing ‘Enrollment’ from the ‘Actions’ button next to the club.

The list of clubs, the Actions button next to one of the clubs is pressed and the mouse cursor is on the Enrollments option

On this page, you will see the patrons enrolled in this club, as well as their answers to the enrollment fields.

A table of the patrons enrolled in a club, the columns are the patrons' names, their card numbers, and there are two additional columns for enrollment fields answers, in this example, Do you need a large print version of the book? and Do you need an audio version of the book?

Version

The values of the club enrollment fields are visible on this page from Koha version 23.11.

In prior versions, you need to create an SQL report to get the values. See this example in the Koha SQL reports library.

Placing a hold for a patron club

You can place holds for a patron club. Holds are placed for club members in a random order.

To place a hold for a patron club from the clubs page:

  • Go to the patron clubs tool (‘Home > Tools > Patron clubs’).

  • Click the ‘Actions’ button for the club and select ‘Search to hold’.

    The list of clubs, the Actions button next to one of the clubs is pressed and the mouse cursor is on the Search to hold option

  • Search for a title and select a record.

  • Select ‘Place hold for [CLUBNAME]’ from either the action links for the record,

    Single search result in the staff interface, among the options at the bottom, there is Holds and Place hold for March 2024 Book Club

    or from the ‘Place hold’ action in the menu bar.

    The arrow button next to the 'Place hold' at the top of the search results in the staff interface is pressed and the options are: Place hold, Place hold for March 2024 Book Club, and Forget March 2024 Book Club

The place holds page is displayed and lists the club members.

Form to place a hold for a club

  • Click the ‘Place hold’ button.

Holds are placed for all club members at once, in a random priority order.

You can also place a hold for a patron club from the bibliographic record. When placing the hold, click on the ‘Clubs’ tab and search for the club’s name. Then click the place hold button.

Club search box when placing a hold for a patron club

Comments

  • Get there: More > Tools > Patrons and circulation > Comments

All comments added by patrons via the OPAC to bibliographic records require moderation by the librarians. If there are comments awaiting moderation they will be listed on the main page of the staff client below the module list:

View of alert that there are comments wainting on Koha main page

and next to the Comments tool on the Tools page

View of alert that there are comments wainting on Koha tools page

To moderate comments click on the notification on the main dashboard or go directly to the Comments tool and click ‘Approve’ or ‘Delete’ to the right of the comments awaiting moderation.

List of comments to moderate with action buttons

If there are no comments to moderate you will see a message saying just that

List of comments moderation when no comments

You can also review and unapprove comments you have approved in the past by choosing the ‘Approved comments’ tab

List of comments to approved with action buttons

Patron import

  • Get there: More > Tools > Patrons and circulation > Import patrons

The patron import tool can be used at any time to add patrons in bulk. It is commonly used in universities and schools when a new batch of students registers.

Creating a patron import file

You can download a blank CSV file with a header from the start page of the patron import tool that you can use as a template for your patron import. The header contains all fields that can be used with the patron import tool. You can delete fields and columns you don’t need with the exception of a few mandatory ones. When overlaying, if your new .csv includes blank columns, any existing values in patron records will be overwritten with blanks. It is best to remove any blank columns in a .csv to ensure no existing data is removed.

Important

cardnumber, surname, and all fields you have defined in the BorrowerMandatoryField preference are required and must match valid entries in your database.

Important

The ‘password’ should be stored in plaintext, and will be converted to a Bcrypt hash.

If your passwords are already encrypted, talk to your systems administrator about options

Important

Date formats should match your dateformat system preference, and must be zero-padded, e.g. ‘01/02/2008’. Alternatively you can supply dates in ISO format (e.g. ‘2008-12-01’).

Important

If your data contains special characters or diacritics, make sure your file is encoded in UTF-8. Otherwise, the special characters will not be imported correctly.

Note

If loading patron attributes, the ‘patron_attributes’ field should contain a comma-separated list of attribute types and values.

  • The attribute type code and a colon should precede each value.

    • For example: “INSTID:12345,BASEBALL:Cubs”

    • This field must be wrapped in quotes if multiple values are defined.

    • Since values can contain spaces, additional doubled-quotes may be required:

      • “INSTID:12345,BASEBALL:Cubs,””BASEBALL:White Sox””

Note

It’s possible to set restrictions using the patron import tool. If the expiration date and comment match an existing restriction, the one in the import file will be skipped. So a patron import can be repeated multiple times without creating duplicate restrictions. But if one of the criteria is different, a new restriction will be added.

Importing patrons

Once you have created your file, you can use the patron import tool to bring the data into Koha.

  • Choose your CSV file


  • Choose to match on ‘cardnumber’ or ‘username’ to prevent adding of duplicate card numbers to the system. Additional matchpoints can be set up using patron attributes marked as unique.


  • Next you can choose default values to apply to all patrons you are importing

    • For example, if you’re importing patrons specific to one branch you can use the field on the import form to apply the branch code to all those you are importing.

  • Finally, you need to decide on what data you want to replace if there are duplicates.

    • A matching record is found using the field you chose for matching criteria to prevent duplication


    • When using patron attributes in your installation, you can choose how they are handled on import. You can either decide to always overlay all patron attributes or you choose to only replace patron attributes included in your import file. This will leave other attributes untouched.


Notices & slips

  • Get there: More > Tools > Patrons and circulation > Notices & slips

All notices and circulation receipts (or slips) generated by Koha can be customized using the Notices & slips tool. The system comes with several predefined templates that will appear when you first visit this tool.

List of notices

Note

  • You can customize the columns of this table in the ‘Table settings’ section of the Administration module (table id: lettert).

Each notice can be edited, but only a few can be deleted, this is to prevent system errors should a message try to send without a template. Each notice and slip can be edited on a per library basis, by default you will see the notices for all libraries.

If you have a style you’d like applied to all slips you can point the SlipCSS preference to a stylesheet. The same is true for notices, using the NoticeCSS preference to define a stylesheet.

You will also want to review the Customising notices and slips wiki page for more information on formatting these notices.

Adding notices and slips

To add a new notice or slip

  • Click ‘New notice’

    New notice button is pressed and the list of notice types is displayed

  • Choose the type of notice, or module this notice is related to

    Form to create a new notice

  • Fill out the notice information

    • Library: choose which library this notice or slip is for.

      Important

      Not all notices can be library specific. For more information review the Customising notices and slips wiki page.

    • Koha module: if you didn’t choose the correct module or type of notice previously, you can change it here.

    • Code: enter a unique alphanumeric code for this notice.

      Important

      Note that codes are limited to 20 characters.

    • Name: enter a descriptive name for the notice.

      Note

      For overdue notices, be sure to put your library name in the description, so that it will be visible when setting up your triggers.

  • Next, you can customize the notice for every possible delivery method.

    • Every notice should have an email template set for it.

      Form to create a new notice, the Email section is expanded

    • If the PhoneNotification system preference is enabled, you will have the option to add a phone template.

      Form to create a new notice, the Phone section is expanded

    • If you’re using the TalkingTechItivaPhoneNotification service you can set up a notification specific to that service.

      Form to create a new notice, the Phone (i-tiva) section is expanded

    • If you plan on printing this notice, you can set the print template

      Form to create a new notice, the Print section is expanded

    • If you have enabled SMS notices with the SMSSendDriver system preference, you can set the text for your SMS notices

      Form to create a new notice, the SMS section is expanded

      Important

      Text messages are limited to 1600 characters. Make sure to keep messages short and avoid adding variables that could be very long (such as the list of items due, for example).

  • Each notice offers the same options

    • HTML message: if you plan on writing the notice or slip in HTML check the ‘HTML message’ box, otherwise the content will be generated as plain text

    • Message subject: for emails, this is what will appear in the subject line of the email

    • Message body: feel free to type whatever message you feel is best, use the fields on the left hand side to enter individualized data from the from database.

      You can also use Template toolkit syntax for more flexibility. See the Notices with Template Toolkit wiki page for more information.

      Note

      Review the Customising notices and slips wiki page for more information.

      Important

      Overdue notices can use <<items.content>> tags by themselves, or use <item></item> to span all of the tags. Learn more about the Overdue notice markup.

      • On overdue notices make sure to use <<items.content>> tags to print out the data related to all items that are overdue.

      • The other option, only for overdue notices, is to use the <item></item> tags to span the line so that it will print out multiple lines. One example for the <item></item> tag option is:

        <item>"<<biblio.title>>" by <<biblio.author>>,
        <<items.itemcallnumber>>, Barcode: <<items.barcode>> ,
        Checkout date: <<issues.issuedate>>, Due date:
        <<issues.date\_due>> Fine: <<items.fine>> </item>


      Important

      Only the overdue notices take advantage of the <item></item> tags, all other notices referencing items need to use <<items.content>>.

      Tip

      To add today’s date you can use the <<today>> tag.

      Tip

      If you don’t want to print the patron’s full name on your slips or notice you can enter data in the Other name or Initials field for each patron and use that value instead.

  • The system preference TranslateNotices will add tabs for each installed language to the notices editor. The notice defined in the ‘Default’ tab will be used if there is no preferred language set for a patron (‘Preferred language for notices’ field in the patron file).

    Form to create a new notice, the email, print and sms sections are inside a tab called "Default", other tabs available are Français (fr-CA) and English (en)

Preview notice templates

For some notices it is possible to preview the notice template showing how it would look to a specified patron for a particular item or record.

If a notice template is previewable the notice template header will contain a field to enter preview data


Fill in the necessary information for the template then click the Preview button below the message body. The preview dialog will indicate if there are any problems generating the notice template preview.

Overdue notice markup

When creating your overdue notices there are two tags in addition to the various database fields that you can use in your notices. You will also want to review the Customising notices and slips wiki page for information on formatting item information in these notices.

Important

These new tags only work on the overdue notices, not other circulation related notices at this time.

These tags are <item> and </item> which should enclose all fields from the biblio, biblioitems, and items tables.

An example of using these tags in a notice template might be like:

The following item(s) is/are currently overdue:

<item>"<<biblio.title>>" by <<biblio.author>>, <<items.itemcallnumber>>, Barcode: <<items.barcode>> Fine: <<items.fine>></item>

Which, assuming two items were overdue, would result in a notice like:

The following item(s) is/are currently overdue:

"A Short History of Western Civilization" by Harrison, John B, 909.09821 H2451, Barcode: 08030003 Fine: 3.50
"History of Western Civilization" by Hayes, Carlton Joseph Huntley, 909.09821 H3261 v.1, Barcode: 08030004 Fine: 3.50

Copying notices and slips

You can also copy an existing notice to another library by selecting the library you want to copy it to in the column “Copy notice” and then clicking on the “Copy” button.

Dropdown with "Centerville" library selected and "Copy" button

Existing notices and slips

Among the default notices are notices for several common actions within Koha. All of these notices can be customized by altering their text via the Notices and slips tool and their style using the NoticeCSS system preference to define a stylesheet.

Tip

Review the Customising notices and slips wiki page for information on formatting item information in these notices.

Here are some of what those notices do:

  • 2FA_DISABLE

  • 2FA_ENABLE

  • 2FA_OTP_TOKEN

    • This notice is used to send a time-based one-time password to a staff user for them to use to log into the staff interface if they have enabled the two-factor authentication on their account.

  • ACCEPTED

  • ACCOUNT_PAYMENT

  • ACCOUNT_WRITEOFF

  • ACQCLAIM (Acquisition claim)

    • Used for claiming orders in the aquisitions module.

    • ACQCLAIM is the code of the sample notice, but it’s possible to define several notices choosing any code. Only the module ‘Claim acquisition’ will be taken into account. All notices with this module will appear in the pull down on the late orders page.

    • This notice is sent if several criteria are met:

      1. The staff patron triggering the email has a valid email address.

      2. The vendor contact marked as ‘Contact about late orders?’ has a valid email address.

  • ACQORDER (Acquisition order)

    • Used in the acquisitions module to send order information to the vendor

    • The notice is triggered manually from the basket summary page using the ‘Email order’ button in the toolbar.

    • This notice is sent if several criteria are met:

      1. The staff patron triggering the email has a valid email address.

      2. The vendor contact marked as ‘Primary acquisitions contact’ and ‘Contact when ordering’ has a valid email address.

  • ACQ_NOTIF_ON_RECEIV

  • AR_CANCELED

    • This notice is sent to the patron when an article request is cancelled by staff.

  • AR_COMPLETED

    • This notice is sent to the patron when an article request is marked as completed by staff.

  • AR_PENDING

    • This notice is sent to the patron when an article request is changed to ‘pending’ status

  • AR_PROCESSING

    • This notice is sent to the patron when an article request is marked as being processed by staff.

  • AR_REQUESTED

  • AUTO_RENEWALS

    • This notice is sent to the patron if automatic renewals are enabled and the patron has chosen to receive it in their messaging preferences.

    • In order to send this notice, you must set the AutoRenewalNotices system preference to “according to patron messaging preferences”.

    • This notice is set so that, depending on the result of the renewal, whether is was successful or not, the message will be different.

  • AUTO_RENEWALS_DGST

    • This notice is sent to the patron if automatic renewals are enabled and the patron has chosen to receive the digest in their messaging preferences.

    • In order to send this notice, you must set the AutoRenewalNotices system preference to “according to patron messaging preferences”.

    • This notice is set so that, depending on the result of the renewal, whether is was successful or not, the message will be different.

  • AVAILABLE

  • CART

  • CANCEL_HOLD_ON_LOST

    • This notice is sent to a patron who placed a hold on an item and staff marked this items as lost from the ‘Holds to pull’ list.

    • This notice is sent if the CanMarkHoldsToPullAsLost system preference is set to ‘Allow to mark items as lost and notify the patron’.

  • CHECKIN

  • CHECKOUT

    • This notice is sent as the ‘Check out’ notice for all items that are checked out

    • This notice is used if two criteria are met:

      1. The EnhancedMessagingPreferences is set to ‘Allow’

      2. The patron has requested to receive this notice

  • CHECKOUT_NOTE

  • DISCHARGE

  • This notice is used to generate a PDF to document a successful discharge request

  • The PDF can either be downloaded by the patron from their patron account or from the staff interface when discharging a patron

  • The discharge feature is controlled by the useDischarge system preference.

There are also a set of predefined slips (or receipts) listed on this page. All of these slips can be customized by altering their text via the Notices & slips tool and their style using the SlipCSS preference to define a stylesheet. Here is what those slips are used for:

  • ACCOUNT_CREDIT

    • Used to print a receipt for a credit (either a payment, writeoff or other credit).

    • The slip or receipt can be printed manually with the ‘Print’ button next to a credit type account line in the patron’s accounting tab.

    • The slip or receipt can also be printed semi-automatically when paying or writing off a charge if the FinePaymentAutoPopup system preference is enabled.

    Note

    It is possible to set specific notices for different credit types. To do so, create a new notice with the code CREDIT_ followed by the credit type code.

    For example, to have a specific slip for writeoffs, create a new notice with the code CREDIT_WRITEOFF.

  • ACCOUNT_DEBIT

    • Used to print an invoice for a debit (any type of charge, such as a lost item fee, or overdue fine).

    • The slip or invoice can be printed manually with the ‘Print’ button next to a debit type account line in the patron’s accounting tab.

    Note

    It is possible to set specific notices for different debit types. To do so, create a new notice with the code DEBIT_ followed by the debit type code.

    For example, to have a specific slip for lost items, create a new notice with the code DEBIT_LOST.

  • ACCOUNTS_SUMMARY

    • Used to print a summary of outstanding charges and unused credits in the patron’s account.

    • The slip can be printed manually with the ‘Print account balance’ option in the ‘Print’ button at the top of the patron’s details page.

  • AR_SLIP

  • CHECKINSLIP

    • This slip lists all items that were checked in today for this patron

    • To print this slip, click Print > Print checkin slip from the patron file

    • You can also print this slip from the Check in page

  • ISSUEQSLIP

  • ISSUESLIP

  • HOLD_SLIP

  • OVERDUE_SLIP

  • RECALL_REQUESTER_DET

    • Used to print the details of the patron who has requested a recall on an item, when receiving the recall.

  • RECEIPT

  • TRANSFERSLIP

    • Used to print a transfer slip

    • The transfer slip is printed when you confirm a transfer from one branch to another in your system

This tool also allows you to modify database entries for some specific purposes. So far, only the overdue fine description is available.

  • OVERDUE_FINE_DESC

    • This template is used to generate the description for overdue fines in a patron’s account.

      Note

      The information available to this customization come from the checkouts (issues), items and patrons (borrowers).

Overdue notice/status triggers

  • Get there: More > Tools > Patrons and circulation > Overdue notice/status triggers

In order to send the overdue notices that you defined using the Notices & slips tool, you need to first set the triggers to have these messages.

Important

In order to have overdue notices sent to your patrons, you need to set that patron category to require overdue notices.

Important

Depending on the value of your OverdueNoticeCalendar preference the delay may or may not include days the library is closed based on the holiday calendar.

The Overdue notice/status triggers tool gives the librarian the power to send up to three notices to each patron type notifying them of overdue items


  • Delay is the number of days after an issue is due before an action is triggered.

    • Important

      If you want Koha to trigger an action (send a letter or restrict member), a delay value is required.

  • To send additional notices, click on the tabs for ‘Second’ and ‘Third’ notice

  • If you would like to prevent a patron from checking items out because of their overdue items, check the ‘Restrict’ box, this will put a notice on the patron’s record at checkout informing the librarian that the patron cannot check out due to overdue items.

    • If you choose to restrict a patron in this way you can also have Koha automatically remove that restriction with the AutoRemoveOverduesRestrictions preference.

  • Next you can choose the delivery method for the overdue notice. You can choose from Email, Phone (if you are using the i-tiva Talking Tech service), Print and SMS (if you have set your SMSSendDriver).

Patron card creator

  • Get there: More > Tools > Patron card creator

The patron card creator allow you to use layouts and templates which you design to print your custom patron cards on your printer. Here are some of the features of the patron card creator module:

  • Customize patron card layouts with text retrieved from the Koha patron data

  • Design custom card templates for printed patron cards (to match the label sheets)

  • Build and manage batches of patron cards to print

  • Export (as PDF) single or multiple batches to print

  • Export (as PDF) single or multiple patron cards from within a batch

Layouts

  • Get there: More > Tools > Patron card creator > Manage > Layouts

A layout defines the text and images that will be printed on to the card and where it will appear.

Note

Up to three lines of text, the patron’s number in barcode representation and up to two images can be printed on to the card.

Add a layout

If you have no layouts defined, you will add a new layout by clicking the ‘New’ button and choosing ‘Layout’.


You may also choose to press ‘Manage layout’ on the left side. Here you are offered a list of available layouts you can select for editing. But at the top of the page there is still the ‘New layout’ button.


  • The name you assign to the layout is for your benefit, name it something that will be easy to identify at a later date

  • The Units pull down is used to define what measurement scale you’re going to be using for your layout.

    Dropdown list of measurement units used in the patron card creator tool, PostScript Points, Agates, US Inches, SI Millimeters, and SI Centimeters

    • Note

      A Postscript Point is 1/72”, an Adobe Agate is 1/64”, an Inch is 25.4 SI Millimeters

  • Next, note if this layout is for the front or the back of the patron card

    • Note

      You will need a layout for both the front and back of your card if you have 2-sided library cards, this option doesn’t allow you to print two sided cards, just lets you track which side of the card you’re designing.

  • You have the option of adding up to 3 lines of text to your card. Your text can be static text of your choosing and/or fields from the patron record. If you want to print fields from the patron record you want to put the field names in brackets like so - <firstname>

  • For each line of text, you can choose your font, font size and the location of the text on the card using the lower X and Y coordinates

  • In order to show the barcode and the patron card number you will need to check the ‘Print card number as barcode’ option. This will turn the patron card number into a barcode. If you want the number to print in human readable format you will need to check the ‘Print card number as text under barcode’ option.

  • Finally you can choose up to two images to print on the card.

    • One can be the patron image which you can resize to meet your needs.

    • The other image can be something like a library logo or symbol that you uploaded using the ‘manage images’ module of the patron card creator Tool.

    Important

    It is the designers responsibility to define textlines, barcode and images such that overlap is avoided.

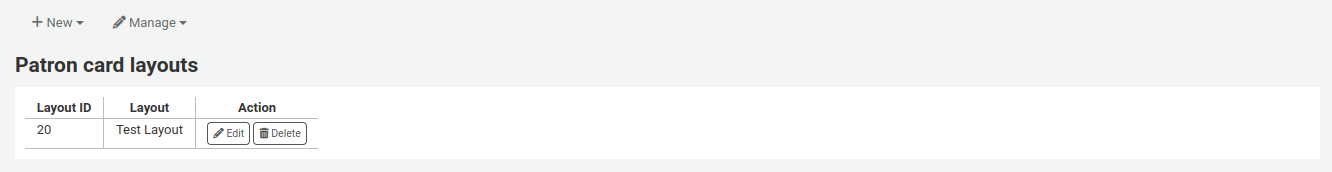

After saving, your layouts will appear on the ‘Manage layouts’ page.


Templates

  • Get there: More > Tools > Patron card creator > Manage > Card templates

A template describes the arrangement of labels on the label sheet/card stock you are using. This might be Avery 5160 for address labels, Gaylord 47-284 for spine labels or Avery 28371 for your patron cards, just to give a couple of examples. All of the information you will need for setting up a template may be on the packaging, and if not it can usually be found on the vendor’s website or can be measured from a sample sheet.

Add a template

To add a new template click on the ‘New template’ button at the top of your page which brings you to the Edit template form immediately. You may also choose to press ‘Manage templates’ on the left side. Here you are offered a list of available templates you can select for editing. But in the top of the page there is still the ‘New template’ button.

"New" button in the patron card creator is open, the mouse cursor is on the "Card template" option

Using the form that appears after pressing either ‘Edit’ or ‘New template’ you can define the template for your sheet of labels or cards.


  • Template ID is simply a system generated unique id

  • Template code should be the name of this template to identify it on a list of templates

  • You can use the template description to add additional information about the template

  • The Units pull down is used to define what measurement scale you’re going to be using for the template.

    Dropdown list of measurement units used in the patron card creator tool, PostScript Points, Agates, US Inches, SI Millimeters, and SI Centimeters

    • Note

      A Postscript Point is 1/72”, an Adobe Agate is 1/64”, an Inch is 25.4 SI Millimeters

  • The measurements (page height, page width, card width, card height) may be on the packaging, and if not it can usually be found on the vendor’s website or can be measured from a sample sheet.

  • A profile is a set of “adjustments” applied to a given template just prior to printing which compensates for anomalies unique and peculiar to a given printer (to which the profile is assigned).

    • Before defining a profile try printing some sample cards so that you can take measurements to define a profile to perform the right adjustments for your printer/template combination.

    • After finding and documenting any anomalies in the printed document, then you can create a profile and assign it to the template.

    • Important

      Do not specify a profile unless needed, i.e. do not click to define a printer profile. It is not possible to remove a profile from a template but you can switch to another profile.

    • Note

      If you are using different printers you may be required to define several templates that are identical only different profiles are specified.

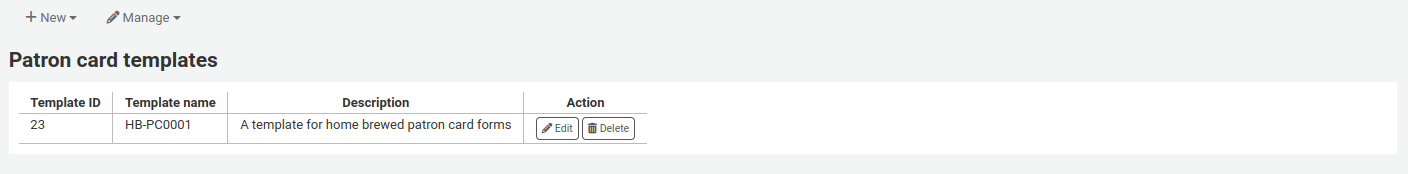

After saving, your templates will appear on the ‘Manage templates’ page.


Profiles

  • Get there: More > Tools > Patron card creator > Manage > Profiles

A profile is a set of “adjustments” applied to a given template just prior to printing which compensates for anomalies unique and peculiar to a given printer. This means if you set a template up and then print a sample set of data and find that the items are not all aligned the same on each card, you need to set up a profile for each printer (or even different tray selections on the same printer) to make up for the differences in printing styles, such as the shifting of text to the left, right, top or bottom.

If your cards are printing just the way you want, you will not need a profile.

Add a profile

To add a new profile, you want to click on the ‘Profiles’ button at the top of your page and choose ‘New profile’


To add a new profile, you want to click on the ‘New profile’ button at the top of your page. Using the form that appears you can define the values to correct the card misalignment on your label sheet. You may also choose ‘Manage profiles’ on the left side and select one of the currently available profiles for editing.


  • The Printer name and Paper bin do not have to match your printer exactly, they are for your reference so you can remember what printer you have set the profile for.

    • Note

      For example: if you want to use the Printer model number in printer name you can, or you can call it ‘the printer on my desk’

  • Template will be filled in once you have chosen which template to apply the profile to on the template edit form

  • The Units pull down is used to define what measurement scale you’re going to be using for your profile.

    Dropdown list of measurement units used in the patron card creator tool, PostScript Points, Agates, US Inches, SI Millimeters, and SI Centimeters

    • Note

      A Postscript Point is 1/72”, an Adobe Agate is 1/64”, an Inch is 25.4 SI Millimeters

  • Offset should be used when the entire image is off center either vertically or horizontally. Creep describes a condition where the distance between the labels changes across the page or up and down the page

    • For offset and creep values, negative numbers move the printed information up and to the left on the printed sheet and positive numbers move down and to the right

    • Example: the text is printed 0 .25” from the left edge of the first label, 0 .28” from the left edge of the second label and 0 .31” from the left edge of the third label. This means the horizontal creep should be set to (minus) -0.03 ” to make up for this difference.

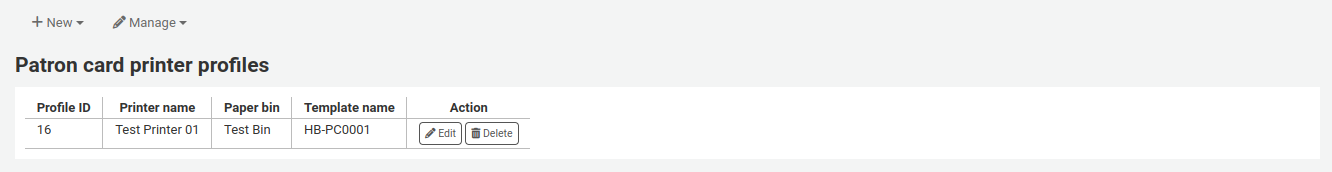

After saving, your profiles will appear on the ‘Manage printer profiles’ page.


Once you have saved your new profile, you can return to the list of templates and choose to edit the template that this profile is for.

Batches

  • Get there: More > Tools > Patron card creator > Manage > Card batches

A batch is a collection of patrons for whom you want to generate cards.

Add a batch

To add a new batch, you want to click on the ‘New batches’ button at the top of your page. Choosing the menu item ‘Manage batches’ on the left a list of already defined batches is displayed. In this display you can either select a batch for editing or add a new batch.


For a new batch a message pops up and directs you to select patrons to be processed in this batch.


After choosing the ‘Add patron(s)’ button the Patron Search window pops up.

Pop up window for patron search

From here you can search for patrons to add to your batch by any part of their name, their category and/or library. Entering * in the search box will display all the patrons.


From the results you can add patrons to the batch by clicking the ‘Add’ button. After adding patrons from the results you can start over and perform another search or click ‘Close’ at the bottom of the screen to indicate that you are done. You will then be presented with your batch.


Alternatively, you can use a custom report to create a batch. A report that contains borrowernumbers will have the option to send the report results to the patron card creator.

Results of a report called 'Batch edit report', the button 'Batch operations with 20 visible records' is open and the options are: for patron records batch patron modification and patron card creator, for bibliographic records batch record modification, batch record deletion, and add to list, and for item records batch item modification and batch item deletion.

Version

The option to send report results to the patron card creator was added to Koha version 23.11.

If you are satisfied with your batch you can proceed to export. If you want to correct or even delete that batch the buttons to do so can be found at the top of your screen. You can always come back here through the ‘Manage > Card batches’ button.

If you would like to export all patron cards you can click ‘Export card batch’ otherwise you can choose specific patrons to print cards for by checking the box to the right of their names and then choose ‘Export selected card(s)’ at the top.

The export menu will ask you to choose a template, a layout and starting position (where on the sheet should printing begin).

Note

For the starting position if the first 6 labels have already been used on your sheet you can start printing on label in position 7 on the sheet. The labels are numbered left to right from top to bottom.


Once you click ‘Export’ you will be presented with a PDF of your labels for printing


When you open the PDF you will see the cards for printing


The above image shows a layout that is made up of two text lines. The first one is just plain text, the second one is composed of the <firstname> <surname> fields. A patron image is printed (if available) and the barcode of patrons number is displayed in code 39. All this is printed on a template with three columns and 8 rows using position 1-3 here. When printing this PDF please take care that your printer doesn’t rescale the PDF (e.g do not fit to paper size) otherwise the printer will not be able to print to the right place per your templates.

Manage images

  • Get there: More > Tools > Patron card creator > Manage > Images

Images uploaded using this tool will appear on the menu when creating patron card layouts. You are limited in how many images you can upload (not counting patron images) by the ImageLimit system preference.

Important

Images must be under 500k in size.

Note

Pictures uploaded with this tool should be at least 300dpi which is the minimum quality for a printable image.

In the center of the screen is a simple upload form, simply browse for the file on your computer and give it a name you’ll recognize later.


Once the file is uploaded you will be presented with a confirmation message.


And the image will be listed with all of your others on the right hand side of the page.


To delete one or multiple of these images, click the checkbox to the right of each image you want to delete and click the ‘Delete’ button.

Batch patron deletion/anonymization

  • Get there: More > Tools > Patrons and circulation > Batch patron deletion/anonymization

This tool allows you to bulk anonymize circulation histories (this means that you keep records of how many times items were checked out - but not the patrons who checked the items out) or bulk delete patrons (remove them from the system completely).

Important

Patrons with outstanding fines or items checked out are not saved. They are not completely removed from the system (they are only moved to the delete_borrowers table), but this tool does not provide as many checks as one may desire.

Important

Before using this tool it is recommended that you backup your database. Changes made here are permanent.

Important

The anonymization will fail quietly if AnonymousPatron preference does not contain a valid value.


To either delete or anonymize patrons

  • Check the ‘Verify’ box on the task you would like to complete (delete or anonymize)

  • Enter a date before which you want to alter the data

  • If deleting patrons you can also choose to find patrons who

    • have not borrowed since a specific date

    • have accounts that will expire before a specific date

    • are in a specific patron category

    • are in a patron list

  • Click ‘Next’

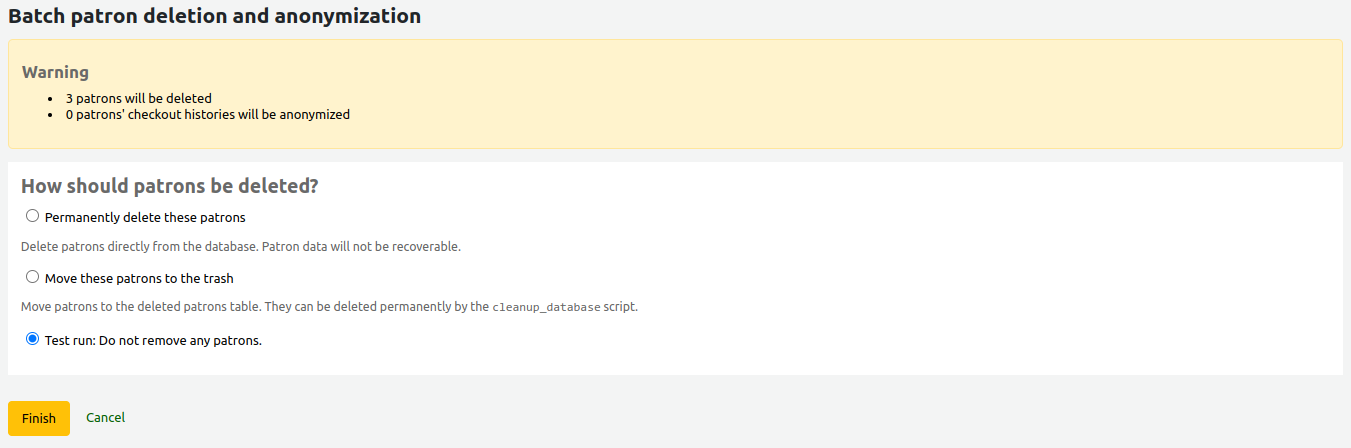

  • A confirmation will appear asking if you’re sure this is what you want to happen


  • Clicking ‘Finish’ will delete or anonymize your data


Batch patron modification

  • Get there: More > Tools > Patrons and circulation > Batch patron modification

With this tool you can make edits to a batch of patron records. Simply load in a file of cardnumbers (one per line), choose from a list of patrons or scan patron card numbers in to the box provided. All options are also available for use with borrowernumbers instead of cardnumbers.

Batch patron modification form with field "Card number list" filled with seven card number entries

Once you have the file loaded or the cardnumbers or borrowernumbers entered click ‘Continue.’ You will be presented with a list of the patrons and the changes you can make.

Batch patron modification form showing three selected patrons to modify and some of the editable fields below

To the right of each text box there is a checkbox. Clicking that checkbox will clear our the field values.

Important

If the field is mandatory you will not be able to clear the value in it.

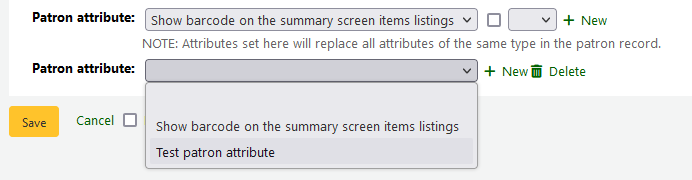

If you have multiple patron attributes you can change them all by using the ‘+ New’ link to the right of the text box. This will allow you to add another attribute value.

A new field for patron attributes is created in the batch patron modification form and the drop down selection of patron  attributes is shown

Once you have made the changes you want, you can click ‘Save’ and the job will be enqueued.

Batch extend due dates

  • Get there: More > Tools > Patrons and circulation > Batch extend due dates

Note

Access to this tool requires the batch_extend_due_dates permission.

This tool allows you to update due dates in bulk, this can be useful if a library needs to close unexpectedly and cannot accept returns.

Batch extend due dates selection page

  • You can filter the selection of checkouts based on patron category, item types, library or a combination.

    Tip

    If needed, you can select multiple options in the dropdown lists by holding the CTRL key while selecting the options.

    Version

    The option to filter by item type is available from Koha version 23.11.

  • Next, specify a date range for the current due date of the materials on loan. For example, you may want to extend the due dates for recent checkouts but exclude long overdue loans.

  • Choose to extend the due dates either to a new hard due date or by a number of days. Using the number of days option can prevent large numbers of loans being due on the same date.

  • You can choose whether to preview the results of your selections.

    Batch extend due dates preview results page

    • If you preview the results, you will see a table which shows you the current due date and the new due date so that you can check your selections. You can untick checkouts if they are incorrect or go back and change your selection.

  • Click on the ‘Modify selected checkouts’ button to see a confirmation screen showing the checkouts that have been modified.

Tag moderation

  • Get there: More > Tools > Patrons and circulation > Tags

Depending on your tagging system preferences, librarians may need to approve tags before they are published on the OPAC. This is done via the tag moderation tool. If there are tags awaiting moderation they will be listed on the main staff dashboard under the module labels:


To moderate the tags visit the Tags tool. When first visiting the tool, you will be presented with a list of tags that are pending approval or rejection by a librarian


  • To see all of the titles this tag was added to simply click on the term


    • From this list of titles you can remove a tag without outright rejecting it from being used in the future by clicking the ‘Remove tag’ button to the right of the title.

  • To approve a tag, you can either click the ‘Approve’ button in line with the term, or check all terms you want to approve and click ‘Approve’ below the table.

  • To reject a tag, you can either click the ‘Reject’ button in line with the term, or check all terms you want to reject and click ‘Reject’ below the table.

Once a tag has been approved or rejected it will be moved to the appropriate list of tags. A summary of all tags will appear on the right of the screen.


Even though a tag is approved or rejected, it can still be moved to another list. When viewing approved tags each tag has the option to reject:


To check terms against the approved and rejected lists (and possibly against the dictionary you have assigned for tag moderation) simply enter the term into the search box on the bottom right of the screen to see the status of the term

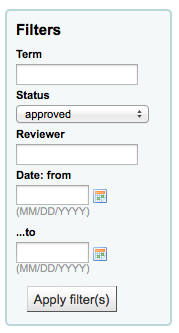

Finally you can find tags by using the filters on the left.


Upload patron images

  • Get there: More > Tools > Patrons and circulation > Upload patron images

Patron images can be uploaded in bulk if you are allowing patron images to be attached to patron records. These images can also be used when creating patron cards.

  • Create a txt file and title it “DATALINK.TXT” or “IDLINK.TXT”

  • On each line in the text file enter the patron’s card number followed by comma (or tab) and then the image file name


    • Make sure that your TXT file is a plain text document, not RTF.

  • Zip up the text file and the image files

  • Go to the Upload patron images tool


  • For a single image, simply point to the image file and enter the patron card number

  • For multiple images, choose to upload a zip file

  • After uploading you will be presented with a confirmation


    Important

    There is a limit of 100K on the size of the picture uploaded and it is recommended that the image be 200x300 pixels, but smaller images will work as well.

Rotating collections

  • Get there: More > Tools > Catalog > Rotating collections

Rotating collections is a tool for managing collections of materials that frequently get shifted from library to library. It adds the ability to store not only an item’s home library and current location but also information about where it is supposed to be transferred to next to ensure that all items in the collection are sent to the correct library. When an item in a rotating collection is checked in, library staff is notified that the item is part of a rotating collection and which branch it should be sent to if it is not at the correct one.

Important

The AutomaticItemReturn system preference must be set to “Don’t automatically transfer items to their home library when they are returned” for rotating collections to function properly.

  • To create a new rotating collection, click the “New collection” button, fill in the title and description, and click “Submit”. Once submitted you’ll see “Collection name added successfully”; click “Return to rotating collections home” to return to the main Rotating collections management page (or click Rotating collections in the sidebar).

  • To add items to a collection, click “Actions” and choose “Add or remove items” next to the collection’s name in the list of collections. Under “Add or remove items” scan or type in the barcode of the item you wish to add to the collection, and hit enter or click ‘Submit’ if necessary.

  • To remove an item from a collection, either click ‘Remove’ next to the item’s barcode in the list of items within the collection or check the “Remove item from collection” box next to the Barcode text box under “Add or remove items”, and scan or type in the barcode, clicking “Submit” or hitting Enter if necessary. Note: The “Remove item from collection” checkbox will remain checked as long as you are on the “Add or remove items” page, unless you uncheck it, to facilitate quickly removing a number of items at a time by scanning their barcodes.

Transfer a rotating collection

Transferring a collection will:

  • Change the current location of the items in that collection to the library it is to be transferred to

  • Initiate a transfer from its original current location/holding library to the current location/holding library it is to be rotated to. When a library receives a collection they will need to check in the items to complete the transfer.

You can transfer a collection in one of two ways:

  • From the main Rotating collections page, click on “Actions” and choose “Transfer” next to the title of the collection you wish to transfer; choose the library you wish to transfer the collection to and click “Transfer collection”.

  • Or, from the “add or remove items” page for a collection, you can click the “Transfer” button, choose the library you wish to transfer the collection to and click “Transfer Collection”.

    Important

    In order to complete the transfer process, the library receiving the rotating collection should check in all items from the collection as they receive them. This will clear the transfer so that the items are no longer shown as being “in transit”.

If an item in a rotating collection is checked in at a library other than the one it is supposed to be transferred to, a notification will appear notifying library staff that the item is part of a rotating collection, also letting them know where the item needs to be sent.


Additional tools

Calendar

  • Get there: More > Tools > Additional tools > Calendar

Libraries can define library closings and holidays to be used when calculating due dates. You can make use of the calendar by turning on the proper system preferences:

  • useDaysMode: Choose the method for calculating due date - either include days the library is closed in the calculation or don’t include them

  • finescalendar: This will check the holiday calendar before charging fines

View of the calendar

Adding events

Before adding events, choose the library you would like to apply the closings to. When adding events you will be asked if you would like to apply the event to one branch or all branches. To add events, simply

  • Click on the date on the calendar that you would like to apply the closing to

    Add new holiday form

  • In the form that appears above the calendar, enter the closing information (for more info on each option click the question mark [?] to the right of the option)

    • Library will be filled in automatically based on the library you chose from the pull down at the top of the page

    • The day information will also be filled in automatically based on the date you clicked on the calendar

      • If this holiday extends on more than one day, enter the end date in ‘To date’

    • In the ‘title’ enter the name of the holiday or the reason for the closing

    • In the ‘description’ enter more information about this holiday

    • Next you can choose if this event is a one time event or if it is repeatable.

      • ‘Holiday only on this day’: this is a one day holiday

      • ‘Holiday repeated every same day of the week’: this is a weekly closing (if you’re closed every Sunday, for example)

      • ‘Holiday repeated yearly on the same date’: this is an annual holiday closing (if you’re closed on January 1st each year, for example)

      • ‘Holiday on a range’: this is a holiday that extends on several days

        Note

        Make sure to enter a ‘To Date’ at the top if you choose ‘Holiday on a range’

      • ‘Holiday repeated yearly on a range’: this is a holiday that extends on several days each year (such as summer holidays for schools)

        Note

        Make sure to enter a ‘To Date’ at the top if you choose ‘Holiday repeated yearly on a range’

    • Finally decide if this event should be applied to all libraries or just the one you have originally selected

      • If you’d rather enter all the holidays and then copy them all to another branch all at once you can use the copy menu below the calendar

        Drop down menu of all libraries from which to choose to which library to copy the holidays

  • After saving you will see the event listed in the summary to the right the calendar

    View of the calendar page showing the calendar and all the programmed holidays

Editing events

To edit events

  • Click on the event on the calendar that you want to change (do this by clicking on the date on the calendar, not the event listed in the summary)

    Edit holiday form

  • From this form you can make edits to the holiday or delete the holiday completely.

    • All actions require that you click ‘Save’ before the change will be made.

  • Clicking on repeatable events will offer slightly different options

    Edit holiday form with the option of generating exceptions for repeating holidays

    • In the form above you will note that there is now an option to ‘Generate an exception for this repeated holiday’ and ‘Generate exceptions on a range of dates’ choosing one of these options will allow you to make it so that this date is not closed even though the library is usually closed on this date.

    • All actions require that you click ‘Save’ before the change will be made.

Additional help

When adding or editing events you can get additional help by clicking on the question mark next to various different options on the form

Text under "Delete this holiday": "This will delete this holiday rule. If it is a repeatable holiday, this option checks for possible exceptions. If an exception exists, this option will remove the exception and set the date to a regular holiday."

CSV profiles

  • Get there: More > Tools > Additional tools > CSV profiles

CSV profiles are created to define how you would like your cart or list to export.

CSV profiles are also used in the acquisitions module to export baskets and late orders, in the serials module to export late issues, and in the reports module to export the list of lost items.

Adding a CSV profile

To add a CSV profile,

  • Click on ‘New CSV profile’

    Add new CSV profile form

    • Profile name: enter a unique and meaningful name for the profile. This name will appear on the export pull down list when choosing ‘Download’ from your cart or list, or when choosing the profile in the acquisitions, serials or reports module to export baskets, late orders, etc.

      View of the cart with the 'Download' button open and "CSV - Simple export" is selected, other options are iso2709, RIS, and BibTex.

    • Profile type: this determines what type of fields you plan to use (MARC or SQL) to define your profile; it will also affect the ‘Usage’ options below.

      • If you choose MARC, you will need to enter MARC fields.

        Add new CSV profile form filled with MARC information

      • If you choose SQL, you will need to enter SQL database fields.

        Add new CSV profile form filled with SQL information

    • Usage: this field is used to indicate what type of report this CSV profile is used with:

    • Profile description: you can use this field to expand the profile name. The description will also appear in the OPAC when patrons download content, so make sure it’s clear for your patrons as well.

    • CSV separator: this is the character used to separate values and value groups.

      Note

      The most common option here is comma because most spreadsheet applications know how to open files split by commas.

    • Field separator (only available with MARC profile type): this is the character used to separate duplicate fields.

      • For example, you may have multiple 650 fields and this is the character that will appear in between each one in the column.

        CSV file opened in a spreadsheet software where we can see the pipes separating subject headings when there are more than one

    • Subfield separator (only available with MARC profile type): this is the character used to separate duplicate subfields.

      • For example, you may have multiple $a subfields in a field.

    • Encoding: use this field to define the character encoding used when saving the file.

    • Only available on the staff interface (only available with MARC profile type): check this box to limit this CSV profile to the staff interface only, meaning patrons will not be able to use this profile to export their cart or lists from the OPAC.

    • Profile MARC fields (only available with MARC profile type): enter the fields or subfields to export, separated by pipes.

      • For example:

        200\|210$a\|301


      Note

      You can use the dollar sign ($) to separate the field number and subfield code, or simply write the field number and subfield code together.

      For example:

      200\|210$a\|301


      Or without the dollar sign:

      200\|210a\|301


      Tip

      You can use your own headers (instead of the ones from Koha) by prefixing the field number with a header, followed by the equal sign.

      For example:

      Personal name=100\|title=245$a\|300


      Note

      You can customize further the profile with Template Toolkit syntax.

      See Using Template Toolkit in MARC CSV profile below for more information and examples.

    • Profile SQL fields (only available with SQL profile type): enter the database fields to export, including the table name, separated by pipes.

      • For example:

        biblio.title\|biblio.author


      Tip

      You can use your own headers (instead of the ones from Koha) by prefixing the field with a header, followed by the equal sign.

      For example:

      Title=biblio.title\|Author=biblio.author


      Important

      For late issues claims you can use data from following tables:

      • serial

      • subscription

      • biblio

      • biblioitems

      • aqbookseller

      For basket exports you can use data from following tables:

      • biblio

      • biblioitems

      • aqorders

      • aqbudgets

      • aqbasket

      Important

      Exporting late orders requires a profile using the Template Toolkit syntax (the same syntax as the notices and slips).

      There is a default profile that comes with Koha that you can use as an example.

      Title[% separator %]Author[% separator %]Publication year[% separator %]ISBN[% separator %]Quantity[% separator %]Number of claims
      [%~ SET biblio = order.biblio ~%]
      "[% biblio.title %]"[% separator ~%]
      "[% biblio.author %]"[% separator ~%]
      "[% bibio.biblioitem.publicationyear %]"[% separator ~%]
      "[% biblio.biblioitem.isbn %]"[% separator ~%]
      "[% order.quantity%]"[% separator ~%]
      "[% order.claims.count%][% IF order.claims.count %]([% FOR c IN order.claims %][% c.claimed_on | $KohaDates %][% UNLESS loop.last %], [% END %][% END %])[% END %]"
      [% END %]

  • Click ‘Submit’ to save the new profile.

Using Template Toolkit in MARC CSV profiles

Template Toolkit syntax can be used to build complex CSV files.

For MARC information, you have to use the ‘fields’ variables to access the field list of the current record.

Start with the column heading, equal sign, and the TT variable. Always separate CSV columns with a pipe (|).

For example, this will return a two-column CSV file, with the first column titled “Title” and the second column titled “Author”. The first column will contain 245$a and the second column will contain 100$a:

Title=[% fields.245.0.a.0 %]|Author=[% fields.100.0.a.0 %]

Important

It’s not possible to display an entire field (e.g. all of 245) you need to list the subfields you want to display.

The ‘0’ indicate which field or subfield to print if there are more than one. For example, this will fetch the first subfield ‘a’ of the first ‘245’ field it finds in the record:

[% fields.245.0.a.0 %]

Single subfield

This is the syntax to get a single subfield from a MARC field.

For example, to get 245$a:

[% fields.245.0.a.0 %]

Multiple subfields in the same column

To concatenate multiple subfields in one column, you’ll need to use [% FOREACH %]. Remember to always define the end of the FOREACH loop with [% END %].

For example, to get both 245$a and 245$b in the same column:

[% FOREACH field IN fields.245 %][% field.a.0 %][% field.b.0 %][% END %]

Multiple subfield values

The previous examples only fetched the first occurrence of the subfield. In some cases, a field might contain more than one subfield of the same code in a field. In that case, you’ll need to use the join() key. The parentheses contain the separator character.

For example, to get 260$a, $b, and $c, in a case where there might be more than one of each subfield, they will be separated by a semicolon followed by a space:

[% FOREACH field IN fields.260 %][% field.a.join('; ') %][% field.b.join('; ') %][% field.c.join('; ') %][% END %]

Indicator values

The indicators can be accessible using the indicator key.

For example, to get the value of the second indicator of the 245 field:

[% fields.245.0.indicator.2 %]

Fixed-length data field values

You can use substr() (substring) to get values from specific positions in fixed-length data fields.

For example, to get the language from the 008 field (positions 35-37):

[% fields.008.0.substr(35,3) %]

Using conditions

Template Toolkit allows to add conditions, with [% IF %], [% ELSIF %], and [% ELSE %]. Remember to always define the end of the condition with [% END %].

For example, to get 650$a if indicator 2 for 650 is set:

Subject=[% FOREACH field IN fields.650 %][% IF field.indicator.2 %][% field.a.0 %][% END %][% END %]

Tip

If you find you have extra spaces in your CSV, you can add tildes (~) inside the TT variables to remove extra whitespaces.

For example, the following code might replace the FOREACH variable with a space, making the title column start with a space:

Title=[% FOREACH field IN fields.245 %][% field.a.join(' ') %][% field.b.join(' ') %][% END %]

To correct this, add tildes at the beginning and end of the FOREACH variable:

Title=[%~ FOREACH field IN fields.245 ~%][% field.a.join(' ') %][% field.b.join(' ') %][% END %]

Modifying CSV profiles

To modify a CSV profile, click the ‘Edit’ button next to the profile.

Alter the necessary fields and click ‘Submit’.

To delete a profile, click the ‘Delete’ button next to the profile.

Using CSV profiles

MARC CSV profiles will appear on the export list or cart menu under the ‘Download’ button in both the staff interface and the OPAC.

View of a list called 'Shakespeare' with the 'Download list' button open and "CSV - Simple export" is selected, other options are iso2709, RIS, and BibTex.

SQL CSV profiles will be available in various Koha modules in the staff interfaces depending on their usage.

  • ‘Late serial issues claims’ CSV profiles will appear at the bottom of the late issues table in the serials module.

  • ‘Export late orders’ CSV profiles will appear at the bottom of the

    late orders table in the acquisitions module.

  • ‘Basket export in acquisition’ CSV profiles will appear in the ‘Download’

    button in acquisitions baskets.

  • ‘Export lost items in report’ CSV profiles will appear in the lost items report.

Log viewer

  • Get there: More > Tools > Additional tools > Log viewer

Actions within the Koha system are tracked in log files. Your system preferences can be changed to prevent the logging of different actions. These logs can be viewed using the log viewer.

Screenshot of the log viewer tool

Note

The warning sign next to a module name indicates that the actions in this module are not logged. Change your logs preferences to log actions from a module.

Choosing different combinations of menu options will produce the log file for that query.

A query for all logs related to the Circulation module produces a result

Log viewer results table

Note

You can customize the columns of this table in the ‘Table settings’ section of the Administration module (table id: logst).

News

  • Get there: More > Tools > Additional tools > News

Koha’s news module allows librarians to post news to the OPAC, staff interface and circulation receipts.

News tool main page

To add news to either the OPAC, the staff interface or a circulation receipt:

  • Click ‘New entry’

    New news entry form

    • Code: enter a unique code for this news item

    • Display location: choose where to put the news

      Drop-down menu of display locations for news

      • Librarian and OPAC interfaces: content will appear on the staff interface main page as well as in the news block on the OPAC

      • Librarian interface: content will appear on the staff interface main page

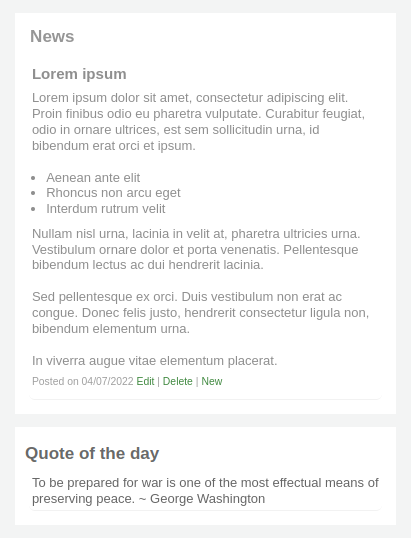

        A news block on the main page of the staff interface, followed by a quote of the day

      • OPAC: content will appear in the top middle part of the OPAC page

        • Below the news in the OPAC there will be an RSS icon allowing you and your users to subscribe to library news

          View of a news item on the OPAC with an RSS icon next to the text 'RSS feed for system-wide library news'

        • You can allow your users to choose to see branch-specific news with the OpacNewsLibrarySelect system preference

      • Slip: content will appear on the circulation receipts

        Issue slip with news at the bottom

        Note

        This can be activated or deactivated in the Notices & slips tool

    • Library: choose the library for which this news item will be shown

      • Prior to end users logging in to the OPAC only news items listed to appear for ‘All libraries’ will display unless your system administrator has configured an ‘OPAC_BRANCH_DEFAULT’ override in virtual host configuration. See installation for details.

    • Publication date: use the publication date field to control from which date your news item appears

      • Examples: (these assume today’s date as 7 May 2019)

        • Publish on current date: set publication date as 7 May 2019

        • Schedule for publishing in future: set date later than 7 May 2019

        • Backdate the news item: set date earlier than 7 May 2019

    • Expiration date: use the expiration date field to automatically stop showing the news item when it is no longer relevant.

      • If this field is empty the news item will be shown until you remove it manually

    • Appear in position: you decide in what order your news items appear

      • If the field is left empty, the news will appear from newest to oldest

      • In this field, 0 is the top-most position; the larger the number, the lower in the list the news will appear

    • You can enter the news title and text for each language installed

Note

You can choose which type of editor to use here (either a text editor or a WYSIWYG (what you see is what you get) editor) with the AdditionalContentsEditor system preference.

  • After filling in all of the fields, click ‘Save’ at the top of the page.

    • Alternatively, click the arrow next to the ‘Save’ button and choose ‘Save and continue editing’ if you need to stay on this page to continue editing the news item.

Depending on your choice for the NewsAuthorDisplay system preference, you will also see the person who created the news item (this uses the logged in person).

HTML customizations

  • Get there: More > Tools > Additional tools > HTML customizations

Koha’s HTML customizations tool allows staff to post content to the OPAC.

Additional content / HTML customizations main page

To add content to the OPAC:

  • Click ‘New entry’

    New additional content entry form

    • Code: enter a unique code for this additional content item

    • Display location: choose where to put the content

      Drop-down menu of display locations for additional content

      • OPAC locations

        The following image shows where each block is displayed on the OPAC’s main page, for the blocks that are displayed on the main page.

        View of the main page of the OPAC with each customizable section highlighted

        Note

        The Quote of the day feature is found in the tools module, and the news are managed in the news tool. The rest of the customizable blocks are managed in the HTML customizations tool.

        • ArticleRequestsDisclaimerText: content will appear and patron will have to accept before they can continue to the article request form; use for any copyright/disclaimer patrons need to be aware of regarding photocopies or scans of articles or chapters

        • CatalogConcernHelp: content will appear at the bottom of catalog concern form when reporting a concern in the OPAC, or reporting a concern in the staff interface. The default text is “Please describe your concern clearly and the library will try to deal with it as quickly as possible”.

        • CatalogConcernTemplate: content will appear in the main text area of the catalog concern form when reporting a concern in the OPAC, or reporting a concern in the staff interface. The default text is

          **Describe the concern**

          A clear and concise description of what the concern is.

          **To Reproduce**

          Steps to reproduce the behavior:
          1. Go to '...'
          2. Click on '....'
          3. Scroll down to '....'
          4. See error

          **Expected behavior**

          A clear and concise description of what you expected to happen.


          Tip

          Since this will be in a text field, there is no way to add formatting. Make sure to use the text editor, not the WYSIWYG editor, in order to have line breaks in your text.

        • opaccredits: content will appear at the bottom of the page

        • OpacCustomSearch: content will replace the simple search bar at the top of the page

        • opacheader: content will appear at the top of the OPAC page

        • OpacLibraryInfo: content will appear in the ‘Libraries’ page in the OPAC, as well as in the holdings table in the OPAC

        • OpacLoginInstructions: content will appear under the login box on the OPAC’s main page

        • OpacMaintenanceNotice: content will replace the default maintenance message when the OpacMaintenance system preference is set to ‘Show’.

          Version

          Prior to Koha version 23.11, this was a system preference. See OpacMaintenanceNotice for more information.

        • OpacMainUserBlock: content will appear in the middle of the OPAC’s main page

        • OpacMoreSearches: content will appear under the search box at the top of the OPAC. By default (and depending on system preferences) there is a link for Advanced Search, Course reserves, Authority search, and Tag cloud. Any new searches will be added to the right of the already present links.

        • OpacMySummaryNote: content will appear above the patron’s summary and below the welcome message when the patron logs in to the OPAC and views their ‘your summary’ tab.

          Top of the your summary page, under the title of the page, it is written Welcome Mary Burton, Click here if you're not Mary Burton and below that is a text that says This is OpacMySummaryNote.

        • OpacNav: content will appear on the left hand column of the main page and patron account on the OPAC. When on the patron account page, the content in OpacNav will appear before the account tabs (summary, charges, personal details, etc.)

        • OpacNavBottom: content will appear on the left hand column of the main page and patron account on the OPAC. When on the patron account page, the content in OpacNavBottom will appear after the account tabs (summary, charges, personal details, etc.). On the main page, the content in OpacNavBottom appears right below the content in OpacNav.

        • OpacNavRight: content will appear on the right side of the OPAC page

        • OPACResultsSidebar: content will appear on the search results page below the list of facets on the left side of the screen.

          Version

          Prior to Koha version 23.11, this was a system preference. See OPACResultsSidebar for more information.

        • OpacSuggestionInstructions: content will replace the text at the top of the purchase suggestion form on the OPAC

        • OpacSuppressionMessage: content will appear on the OPAC when a record is blocked. (See the OpacSuppression system preference for more information.)

          Version

          Prior to Koha version 23.11, this was a system preference. See OpacSuppressionMessage for more information.

        • PatronSelfRegistrationAdditionalInstructions: content will be displayed after the patron successfully creates a library account via the OPAC.

          Version

          Prior to Koha version 23.11, this was a system preference. See PatronSelfRegistrationAdditionalInstructions for more information.

          Note

          Note that this only appears after the patron has registered.

        • SCOMainUserBlock: content will appear in the center of the main page of the self check-out screen.

          Version

          Prior to Koha version 23.11, this was a system preference. See SCOMainUserBlock for more information.

        • SelfCheckHelpMessage: content will appear above the existing help message when clicking the ‘Help’ link in the top right of the self check-out interface.

          Version

          Prior to Koha version 23.11, this was a system preference. See SelfCheckHelpMessage for more information.

        • SelfCheckInMainUserBlock: content will appear in the center of the main page of the self check-in screen.

          Version

          Prior to Koha version 23.11, this was a system preference. See SelfCheckInMainUserBlock for more information.

      • Staff interface locations

        • StaffAcquisitionsHome: content will appear at the bottom of the Acquisitions module main page.

        • StaffAuthoritiesHome: content will appear at the bottom of the Authorities main page.

        • StaffCataloguingHome: content will appear at the bottom of the Cataloguing module main page.

        • StaffListsHome: content will appear at the bottom of the Lists main page.

        • StaffPatronsHome: content will appear at the bottom of the Patrons module main page.

        • StaffPOSHome: content will appear at the bottom of the Point of sale main page.

        • StaffSerialsHome: content will appear at the bottom of the Serials module main page.

    • Library: choose the library for which this content will be shown

      • Prior to end users logging in to the OPAC only content blocks listed to appear for ‘All libraries’ will display unless your system administrator has configured an ‘OPAC_BRANCH_DEFAULT’ override in virtual host configuration.

    • Publication date: use the publication date field to control from which date your content appears

      • Examples: (these assume today’s date as 7 May 2019)

        • Publish on current date: set publication date as 7 May 2019

        • Schedule for publishing in future: set date later than 7 May 2019

        • Backdate the news item: set date earlier than 7 May 2019

    • Expiration date: use the expiration date field to automatically stop showing the content when it is no longer relevant.

      • If this field is empty the content will be shown until you remove it manually

    • Appear in position: you decide in what order your content appear, when there is more than one in the same display location

      • If the field is left empty, the content will appear from oldest to newest

      • In this field, 0 is the top-most position; the larger the number, the lower in the list the content will appear

    • You can enter the content title and text for each language installed

      Note

      The title is not shown for additional content. It mostly serves to know at a glance what the content is about when looking at the list of additional content items. If you want a title to appear, you must add it in the text portion.

Note

You can choose which type of editor to use here (either a text editor or a WYSIWYG (what you see is what you get) editor) with the AdditionalContentsEditor system preference.

  • After filling in all of the fields, click ‘Save’ at the top of the page.

    • Alternatively, click the arrow next to the ‘Save’ button and choose ‘Save and continue editing’ if you need to stay on this page to continue editing the news item.

Pages

  • Get there: More > Tools > Additional tools > Pages

The pages tool is a tool to create custom additional pages in the OPAC and in the staff interface. It is based on the same tool as the news and the HTML customizations, therefore it works in the same way.

Pages tool main page, with table of current pages

To add a new page:

  • Click ‘New entry’

    New page entry form

    • Display location: choose the interface from which this page should be accessed

      • Librarian and OPAC interfaces: two links will be created, one for the OPAC and one for the staff interface

      • Librarian interface: a link for the staff interface will be created

      • OPAC: a link for the OPAC will be created

    • Library: choose the library for which this page will be available

      • If an OPAC page is limited to a library, only logged in users whose home library matches the page library will be able to access the page.

      • Pages limited to a library will not be accessible to OPAC users who are not logged in, unless your system administrator has configured an ‘OPAC_BRANCH_DEFAULT’ override in virtual host configuration.

      • If a staff interface page is limited to a library, only staff logged into that library will be able to access the page.

    • Publication date: use the publication date field to control from which date your page is accessible, if it should only be accessed at a future date.

    • Expiration date: use the expiration date field to remove the page after a specific date.

      • If this field is empty the page will be available until you remove it manually

    • You can enter the page title and content for each language installed

Note

You can choose which type of editor to use here (either a text editor or a WYSIWYG (what you see is what you get) editor) with the AdditionalContentsEditor system preference.

  • After filling in all of the fields, click ‘Save’ at the top of the page.

    • Alternatively, click the arrow next to the ‘Save’ button and choose ‘Save and continue editing’ if you need to stay on this page to continue editing the news item.

  • In the table, a link will be generated for the OPAC or the staff interface or both. Use this link in HTML customizations, news or system preferences such as IntranetNav or IntranetmainUserBlock so that the patrons or staff members can access the new page.

    Note

    To link to a specific page, use the code in the URL with the code= parameter. For example:

    OPACBASEURL/cgi-bin/koha/opac-page.pl?code=staff_and_opac_42

    STAFFCLIENTBASEURL/cgi-bin/koha/tools/page.pl?code=staff_and_opac_42


    In multi-language installations, use the language= parameter followed by the language code to link to the page in a specific language. For example:

    OPACBASEURL/cgi-bin/koha/opac-page.pl?code=staff_and_opac_42&language=fr-CA

    STAFFCLIENTBASEURL/cgi-bin/koha/tools/page.pl?code=staff_and_opac_42&language=fr-CA


To use a custom page

Once the page has been developed and saved, you will see a summary table of all custom pages. This table also displays the generated links to access these custom pages. The links will be available in both the default language, and the installed language currently in use by the logged in staff member.

Pages tool main page, with table of current pages

There is a button to preview the created page. This is helpful to check how the page looks and functions before it is deployed.

Preview of a page

Now the page has been created, there are a number of ways to make the page accessible to your patrons in the Koha OPAC.

Example of a page on the OPAC

One option is to use an HTML customisation to add the link to the page to a section of the OPAC. The page can be added as a navigation link (in OpacNav, OpacNavBottom, or OpacNavRight). Depending on the page, it may be more suitable in the header (opacheader), footer (opaccredits), or main section of the homepage (OpacMainUserBlock).

HTML customizations are only displayed on the OPAC, so News items would be the appropriate tool to add the link to the main landing page of the staff interface.

Example of an OpacNav HTML customization with links to pages

The benefit of putting the page link in an HTML customization or News item is that you can use the WYSIWYG editor, instead of writing code. However, there is always the option to write the content in the HTML text editor too, if you prefer.

Those more proficient in writing code could use jQuery (Javascript) to insert their page link anywhere in the OPAC or staff interface.

Example of using javascript in the OPACUserJS system preference to add a link to a custom page under the search bar in the OPAC

Using jQuery, the pages could be added to either interface as simple text links, or as more advanced button links or image links. Add code to the OPACUserJS system preference to apply jQuery to the OPAC, or to the IntranetUserJS system preference to apply jQuery to the staff interface.

Clever ways to use custom pages:

There are many interesting ways to use custom pages in a Koha library. We’ve heard discussion of pages being used for tables of contents, frequently asked questions pages for the library, and enquiry forms.

Example of a custom page, with a form for patrons to send enquiries to the library

Another way to make custom Koha page content accessible for users, would be to catalogue those pages so they pop in in Koha search results, for example library tutorials that patrons may be looking for.

Example of a custom page "How to use eBooks Tutorial" catalogued as a bibliographic record

Once the page has been created, it can be catalogued in the URI field of a record (856$u). Alternatively, it could be catalogued in the URI field of an item attached to a record (952$u). Both of these fields get converted into hyperlinks by Koha. If catalogued in a record or item, it would then be indexed and become searchable.

Once catalogued, these pages could be used in other ways that are typically reserved for books and other records. The records representing pages can be added to lists, or stored in virtual collections or locations that make them easier to find in the catalogue. They could even be captured and displayed in carousels!

Task scheduler

  • Get there: More > Tools > Additional tools > Task scheduler

The task scheduler is a way to schedule reports to run whenever you want.

To schedule a task, visit the task scheduler and fill in the form


  • Current Server Time shows the time on your server (schedule all of your reports to run based on that time - not on your local time)

  • Time should be entered as hh:mm (2 digit hour, 2 digit minute)

  • Date should be entered using the calendar pop up

  • From Report choose the report you want to schedule

  • Choose whether to receive the text of or a link to the results

  • In the Email filed enter the email of the person you want to receive your report

Below the task scheduler form, there is a list of scheduled reports


You can also schedule reports directly from the list of saved reports by clicking the ‘Schedule’ link


Troubleshooting

Task scheduler will not work if the user the web server runs as doesn’t have the permission to use it. To find out if the right user has the permissions necessary, check /etc/at.allow to see what users are in it. If you don’t have that file, check etc/at.deny. If at.deny exists but is blank, then every user can use it. Talk to your system admin about adding the user to the right place to make the task scheduler work.

Quote editor

  • Get there: More > Tools > Additional Tools > Quote editor

This tool will allow you to add and edit quotes to show on the OPAC or the staff interface.

Main page of the quote of the day editor

To turn this feature on set the QuoteOfTheDay system preference to either ‘OPAC’, ‘staff interface’, or both, and add at least one quote using this tool.

In the OPAC, the quotes will appear above the ‘OpacMainUserBlock’ news block.

View of the main page of the OPAC, customized, and with each section highlighted and labeled

In the staff interface, the quotes will appear under the news on the left side.

A news block on the main page of the staff interface, followed by a quote of the day

Adding a quote

To add a quote:

  • Click the ‘New quote’ button in the toolbar at the top of the page.

    Main page of the quote of the day editor

  • Fill out the form.

    New quote form

    • Source: enter the source of the quote, e.g. the name of the person who said the quote

    • Text: enter the text of the quote

    Warning

    Both the ‘Source’ and the ‘Text’ fields must be filled in in order to save the new quote.

  • Click ‘Submit’ to save the new quote.

The new quote should now be visible in the list.

Importing quotes

You can import a batch of quotes as a CSV file. Your file must contain two columns in the form: “source”,”text” with no header row.

Note

You will be prompted to confirm upload of files larger than 512KB.

  • To start the import process click the ‘Import quotes’ button at the top of the screen.

    Main page of the quote of the day editor

  • Once on the import quotes screen you can browse your computer for the file you would like to import

    Quote uploader screen

  • After selecting the CSV file, click the ‘Open’ button and the file will be uploaded into a temporary editing table.

    A list of imported quotes in a table

  • From the listing you can edit either the ‘Source’ or ‘Text’ fields by clicking on the desired field. When you are finished editing a field, press the <Enter> key on your keyboard to save the changes.

    Clicking in the table on the source or the text of a quote will open a editable field

  • Once you are satisfied with the quotes, click the ‘Save quotes’ button in the toolbar at the top and the quotes will be saved.

Editing a quote

To edit a quote, click on the ‘Edit’ button to the right of the quote.

Main page of the quote of the day editor

Edit either the ‘Source’ or ‘Text’ fields.

Click ‘Submit’ to save the quote.

Deleting a quote

To delete a quote, click on the ‘Delete’ button to the right of the quote.

Main page of the quote of the day editor

Confirm the deletion by clicking ‘Delete’.

Quote deletion confirmation modal

Tool plugins

This tool is used to view, manage and configure plugins used as tools.

This section will only be visible once you have uploaded tool-type plugins in the plugin administration page.

  • Get there: More > Tools > Additional Tools > Tool plugins

From this page, you will see only tool-type plugins.

See the managing plugins section of this manual to learn how to manage your tool-type plugins.

Upload

  • Get there: More > Tools > Additional Tools > Upload

This tool will allow you to upload files to your Koha system for selection from the Cataloging form.

Upload files

When you first visit the Upload tool you might see a warning about missing a category.


Categories are defined in the authorized value in the UPLOAD category. If you do not have upload categories then your files will be temporary and will be deleted the next time the server is rebooted. Once you have a value in the UPLOAD authorized value category you will see a Category pull down below the ‘Browse’ button.


Browse your computer a file, choose a category and decide if the public will be able to download this file via the OPAC. Once your file is uploaded you will be presented with a confirmation.


Search files

All uploaded files are searchable from below the upload form. Using the form you can search any part of the filename and/or the Hashvalue.Search uploaded files

You will be presented with the results of your search.


Access files

  • Get there: More > Tools > Additional Tools > Access files

This option allows access to files stored on the server from the staff interface. The directories where the files are stored need to be defined in the koha-conf.xml file. In order to be able to access the tool, a staff patron requires the superlibrarian or access_files patron permission


OPAC problem reports

  • Get there: More > Tools > Additional tools > OPAC problem reports

This tool is used to manage the problem reports sent by patrons via the OPAC.

Note

This tool only appears if the OPACReportProblem system preference is enabled.

From this tool, you will see all the problems that were reported by patrons on the OPAC.

Table of problem reports submitted by patrons

From the ‘Actions’ column, you can

  • ‘Mark viewed’: mark this problem report as viewed, this will change the status of the problem report to ‘Viewed’

  • ‘Mark closed’: close this problem report, this will change the status of the problem report to ‘Closed’

  • ‘Mark new’: mark this problem as new (i.e. not viewed), this will revert the status back to ‘New’.

You can also batch change statuses by checking the boxes next to the problem reports you want to change and use the button at the top of the page.

Cash management

Koha includes a number of options for dealing with monetary transactions and actions to allow for fine grained tracking of these processes for audit and analytic processes.

Cash registers

Cash registers can be used to track transactions to a specific location in your library. This can be especially helpful for detailing where cash has been taken for payments and then when this cash is subsequently removed and taken to the bank.

Setup

To enable the use of cash registers, you must turn on the UseCashRegisters system preference.

You can then configure cash registers for your library from the cash registers page in the administration module.

Cashup

The action of ‘cashing up’ can be recorded against a cash register from both the library details and register details pages.

Clicking the Record cashup button will simply record the date and time that the action has taken place and is intended to allow the regular record of when money is collected from the cash register and taken to the bank.

Both of the above pages utilize the cashup record to limit the display of transactions/summaries to only pertinent information, since the last cashup.

Once a cashup has taken place, a summary of the transactions taken during that cashup period is available for display, and printing, via the Summary link found next to the last cashup date on the register details page.

A cashup summary view modal

Cash summary for library

  • Get there: Home > Tools > Cash summary for library

A summary of transaction amounts associated to a libraries cash registers can be found under the ‘Cash summary for library’ page tool.

The summary will list registers associated with your logged in branch alongside information about how much money should be found in each register, what is available to take to the bank and a breakdown of income vs outgoings.

Note: You can also access this page from the left hand menu available on the Point of sale page when that module is enabled.

Transaction history for register

  • Get there: Home > Tools > Cash management > Transaction history for register

A list of all transactions to have taken place at a register is available by clicking on the cash register name from the library details page.

If you have the correct permissions, you can re-print receipts, issue refunds and record cashups from this page.

Note: You can also access this page from the left hand menu available on the Point of sale page when that module is enabled.
